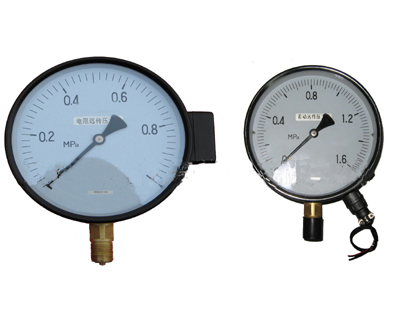

YNTZ-150ÐÍPressure gauge with resistance transmitter and YNTZ-150B type remote seismic resistance of stainless steel pressure gauge has a good vibration resistance, especially for mechanical vibration and media Pulse for measuring the work environment of copper and copper alloy, or stainless steel alloys corrode gas, liquid pressure, pressure gauge with resistance transmitter by instrument internally mounted Positioning sensors to measure the value to be transmitted from the measuring point on the secondary instrument to achieve centralized monitoring and remote control, in addition, pressure gauge with resistance transmitter Instructions can also place pressure on technology to facilitate on-site inspection.
pressure gauge with resistance transmitter with patch isolation ( diaphragm body ) connection, made diaphragm pressure gauge with resistance transmitter, used to measure corrosive than Strong viscosity, easy to crystallize the media pressure.
major technical indicators
1 , the basic error: plus or minus 1 . 6 class.
2 ,: measuring range: (Mpa)
( special specifications, please specify when ordering
)
0-0.16 0-0.25 0-0.4 0-0.6
0.1 0-1.6 0-2.5 0-4
0-6 0-10 0—16 0-25 0-40
-0.1-0.06 -0.1-0.15 -0.1-0.3 -0.1-0.5
-0.1-0.9 -0.1—1.5 -0.1—2.4
3¡¢Working conditions (1) Ambient temperature: -40-60 ¡æ
(2) Working Pressure: Static load:
used to measure the upper limit of the 3 / 4
Alternating Load: The scale value of the 2 / 3
short-time pressure: The scale value
(3) Relative humidity: <85 %
4 , slide resistance transmitter technical data: Initial resistance: 3-20¦¸
Full scale resistance: 340-400¦¸
terminal of the applied voltage <6V
5 , meter diameter: ¦µ150mm
6 , connecting dimensionsM20X1£®5 |
