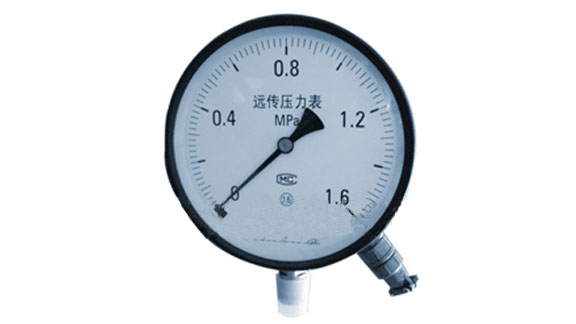

YTZ-150-type pressure gauge with resistance transmitter
 |
¡¡¡¡YTZ-150Type pressure gauge with resistance transmitter YTZ-150B stainless steel pressure gauge with resistance transmitter for measurement of copper and copper alloy, or stainless steel alloys corrode gas and liquid pressure, pressure gauge with resistance transmitter installed by the positioning of the internal instrument Control sensors to be measured from the measuring point spread on the secondary instrument to achieve the centralized testing and remote control, in addition, pressure gauge with resistance transmitter can also place indicated pressure process to facilitate on-site inspection. major technical indicators 0.1 0-1.6 0-2.5 0-4 0-6 0-10 0—16 0-25 0-40 -0.1-0.06 -0.1-0.15 -0.1-0.3 -0.1-0.5 -0.1-0.9 -0.1—1.5 -0.1—2.4 3¡¢Working conditions (1) Ambient temperature: -40-60 ¡æ (2) Working Pressure: Static load: used to measure the upper limit of the 3 / 4 Alternating Load: The scale value of the 2 / 3 short-time pressure: The scale value (3) Relative humidity: <85 % 4 , slide resistance transmitter technical data: Initial resistance: 3-20¦¸ Full scale resistance: 340-400¦¸ terminal of the applied voltage <6V 5 , meter diameter: ¦µ150mm 6 , connecting dimensions £ºM20X1£®5 |
